Why is the UV One Pass Inkjet Marking Machine

1. Core Functions of UV One Pass Inkjet Marking Machine

The UV one pass inkjet marking machine is an industrial high-speed digital marking and printing device integrating piezoelectric inkjet technology, full-width fixed printhead array and UV-LED instant curing system. Its core working principle is to arrange industrial printheads across the full effective width in a fixed position. The substrate moves continuously in one direction through the conveyor platform. All patterns, texts and codes are completed by one-time inkjet deposition and synchronous UV curing without repeated scanning and reciprocating movement of printheads, realizing streamlined one-pass marking and printing production .

In industrial scenarios, the machine undertakes four core functional modules. First, variable data marking function: it supports one-time continuous printing of dynamic QR codes, barcodes, serial numbers, anti-counterfeiting codes, batch numbers, production dates and personalized variable information. It perfectly connects enterprise data systems and realizes full-process product traceability . Second, high-definition pattern and text printing function: with a resolution up to 600×1200dpi and minimum ink droplet volume as low as 3.5pL, it clearly prints fine lines, tiny characters and gradient patterns, meeting the marking requirements of high-standard packaging and precision parts . Third, multi-material adaptive marking function: compatible with paper, cardboard, PVC, PET, PP film, plastic, metal, glass, wood and coated materials. It can stably mark on both rigid plates and flexible roll materials, covering packaging, electronics, daily chemicals, food and pharmaceutical industries . Fourth, assembly line integrated production function: it can be seamlessly connected with automatic production lines such as roll-to-roll unwinding and rewinding, carton conveying and product assembly. It supports 24-hour uninterrupted continuous operation and becomes a key intelligent marking equipment for automated factories .

In addition, the machine is equipped with an optional plasma surface treatment module. It can activate the surface of low-surface-energy materials such as plastic and glass in real time, improve ink adhesion by more than 40%, and avoid fading and falling off of marking content in subsequent use . Matching industrial negative pressure ink supply system and intelligent height sensing function ensure stable ink output and automatic adaptation to substrates with different thicknesses, realizing one-key switching of marking tasks for different products .

2. Technical and Structural Features

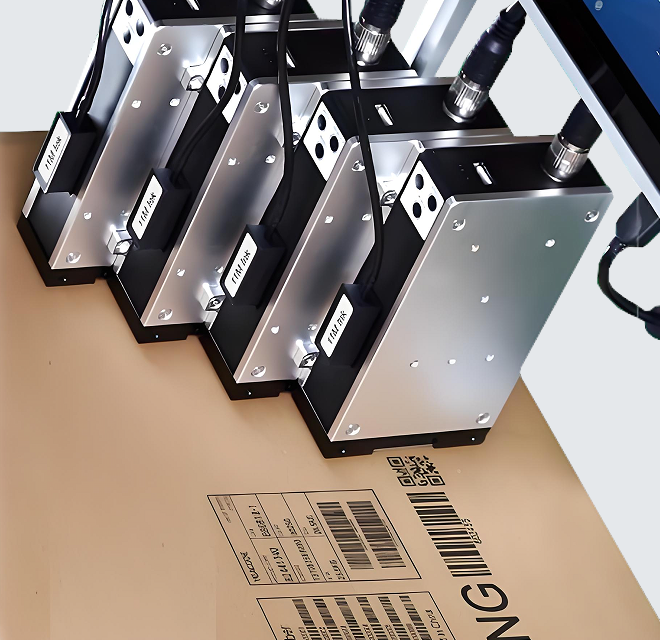

2.1 High-speed One-pass Working Structure

Different from traditional multi-pass scanning inkjet equipment that relies on printhead reciprocating movement for layered printing, the UV one pass model adopts a full-width fixed printhead layout. The printhead remains static, and the substrate moves at a constant speed linearly. The single-color marking speed reaches 120m/min, and multi-color high-definition marking can stably maintain 25–30m/min. Its hourly output is 4–6 times that of conventional scanning UV printers, with daily production capacity up to 7,000–15,000 square meters . The whole process eliminates idle stroke, acceleration and deceleration loss of scanning equipment, and the marking efficiency is not affected by pattern complexity and color quantity .

2.2 Industrial-grade Hardware Configuration

The machine is equipped with mainstream industrial piezoelectric printheads such as Ricoh G5/G6 and Xaar, with a service life of more than 106 billion inkjet times and stable long-term operation without frequent replacement . The positioning accuracy of the servo motion system reaches ±5μm, which effectively avoids color deviation and pattern dislocation in high-speed marking . The built-in independent UV-LED constant temperature cooling system controls the curing temperature within 40℃, realizing instant drying without waiting. It does not cause thermal deformation to heat-sensitive substrates such as plastic films . The overall noise of the equipment is controlled below 70dB(A), meeting the environmental noise standard of industrial workshops .

2.3 Digital No-plate Flexible Production

Adopting full digital printing mode, no printing plate, screen making and mold opening are required. Job switching only needs to replace electronic files, and the debugging time is shortened from 30–60 minutes of traditional equipment to within 10 seconds . It is compatible with small-batch customized orders and large-batch standardized production simultaneously, breaking the production bottleneck that traditional printing can only take large orders and is not cost-effective for small orders . The supporting RIP software realizes one-key typesetting, automatic color calibration and variable data batch generation, and ordinary workshop employees can operate proficiently after simple training .

2.4 Low Consumption and Environmental Protection Design

It adopts special UV curable ink matched with the equipment, which contains no volatile solvent, conforms to EU REACH and CLP environmental protection regulations, and has no formaldehyde and peculiar smell during production . Compared with multi-pass equipment, it reduces ink waste by 30% in the debugging and production process, and the overall energy consumption per unit product is reduced by 55% . The equipment supports automatic ink supply and residual ink recovery, with a scrap rate controlled below 0.5%, far lower than the 3%–5% defective rate of traditional marking equipment .

3. Core Competitive Advantages

3.1 Efficiency Advantage: Substantial Improvement in Production Capacity

Data shows that under the same width specification, the hourly output of UV one pass marking machine is 1200–1500 square meters, while that of traditional scanning UV equipment is only 500–700 square meters . For enterprises with daily marking demand of more than 10,000 pieces, one machine can replace 3–5 sets of traditional multi-pass equipment, saving workshop space and reducing the configuration of production personnel. The one-pass linear operation mode avoids banding and overlapping ghosting common in bidirectional scanning printing, and the yield rate is increased by more than 8% .

3.2 Cost Advantage: Full Reduction of Comprehensive Operating Cost

In terms of labor cost, the equipment realizes automatic feeding, marking and curing integration, reducing manual participation links by 40% compared with traditional processes, and saving annual labor expenditure significantly . In terms of material cost, it eliminates plate-making and screen-making expenses, and is especially suitable for orders with less than 500 pieces, with the single-piece printing cost reduced by 18%–22% . In terms of maintenance cost, the fixed printhead structure reduces mechanical wear and failure probability, and the annual maintenance cost is saved by more than 35% compared with scanning equipment with frequent reciprocating movement . In addition, the equipment has strong compatibility, no need to purchase multiple devices for different materials, and reduces the investment of fixed assets.

3.3 Quality Advantage: Stable and Durable Marking Effect

With 600–1200dpi high resolution and 3.5pL micro ink droplet control technology, the marked barcode and QR code have 100% recognition rate, and tiny characters above 5pt are clear and complete . After UV-LED instant curing, the ink layer has the characteristics of friction resistance, scratch resistance, water resistance and weather resistance. After professional testing, the marking content does not fade or fall off after 50 times of friction and 3 years of outdoor placement . Equipped with automatic tension deviation correction system for roll materials, it effectively avoids material deviation and wrinkling during high-speed operation, ensuring consistent marking effect of each product .

3.4 Application Advantage: Wide Compatibility and Easy Line Integration

The machine supports flexible switching of roll-to-roll and sheet-fed production modes, and the applicable substrate thickness ranges from 0.1mm thin film to 50mm thick plate . It can be seamlessly connected with carton production lines, packaging assembly lines, plastic product molding lines, etc., without modifying the original production process . It covers multiple industries such as food and drug packaging, electronic component marking, daily chemical product coding, gift and craft printing, and logistics label variable data production, with strong industry scalability .

4. Industrial Pain Points Solved by the Equipment

4.1 Solve the Pain Point of Low Efficiency and Difficult Delivery of Traditional Marking

Traditional multi-pass scanning inkjet marking adopts reciprocating layered printing, with slow speed and limited production capacity. Facing peak orders and urgent delivery demands, enterprises are often unable to complete scheduling. The UV one pass machine breaks the speed bottleneck with one-time forming technology. The production efficiency is increased by 4–7 times, realizing rapid order turnover and helping enterprises shorten the delivery cycle by 30%–50% . At the same time, 24-hour uninterrupted operation adapts to the demand of industrial mass production and solves the problem of insufficient production capacity in peak seasons.

4.2 Solve the Pain Point of High Cost and Inflexible Order Production

Traditional letterpress and screen printing require plate-making and mold opening, with high upfront cost and long cycle, and are not suitable for small-batch, personalized customized orders. Multi-pass digital equipment has long debugging time and high single-piece cost for small orders, resulting in low profit margin or even loss for enterprises . The UV one pass machine has no plate-making cost and supports one-key file switching. It is not limited by order quantity, realizing profitable production of both large-batch orders above 10,000 pieces and small customized orders below 500 pieces. Data shows that 83% of small and medium-batch orders under 1,000 pieces have better return on investment by adopting one pass equipment .

4.3 Solve the Pain Point of Poor Marking Quality and Easy Defects

Traditional marking processes such as laser printing and thermal transfer have shortcomings such as easy carbon deposition, fuzzy codes and short service life. Scanning inkjet equipment is prone to banding, color deviation and pattern dislocation due to multiple passes and mechanical vibration . The UV one pass machine adopts fixed printhead precise inkjet and synchronous curing technology, with stable positioning accuracy and uniform ink layer. It solves common quality problems such as fuzzy coding, pattern ghosting and ink layer falling off. For low-surface-energy materials such as plastic and glass, the optional plasma module perfectly solves the pain point of poor ink adhesion .

4.4 Solve the Pain Point of High Energy Consumption, Environmental Pollution and Difficult Integration

Traditional printing and marking equipment has high energy consumption, large solvent odor and volatile harmful substances, which do not meet environmental protection standards and bring hidden dangers to workshop employees' health. Moreover, most equipment is independent and difficult to be connected with automated production lines, relying on manual loading and unloading with low degree of intelligence . The UV one pass machine uses environmentally friendly UV ink with zero volatile emissions, low overall noise and 55% lower energy consumption. It supports automatic line docking, realizes unmanned marking operation, reduces manual intervention, and meets the dual needs of enterprise environmental protection production and intelligent upgrading .

4.5 Solve the Pain Point of Many Material Limitations and Difficult Universal Marking

Many traditional marking equipment can only be applied to paper and conventional plastic materials, and cannot form clear and firm marks on metal, glass, coated film and other special materials, requiring the purchase of multiple types of equipment for different products . The UV one pass machine has strong material compatibility, covering almost all common industrial substrates. It realizes one machine for multiple purposes, avoids repeated equipment investment, and reduces the difficulty of production management and equipment maintenance for enterprises.
