1. Main Function

Description:

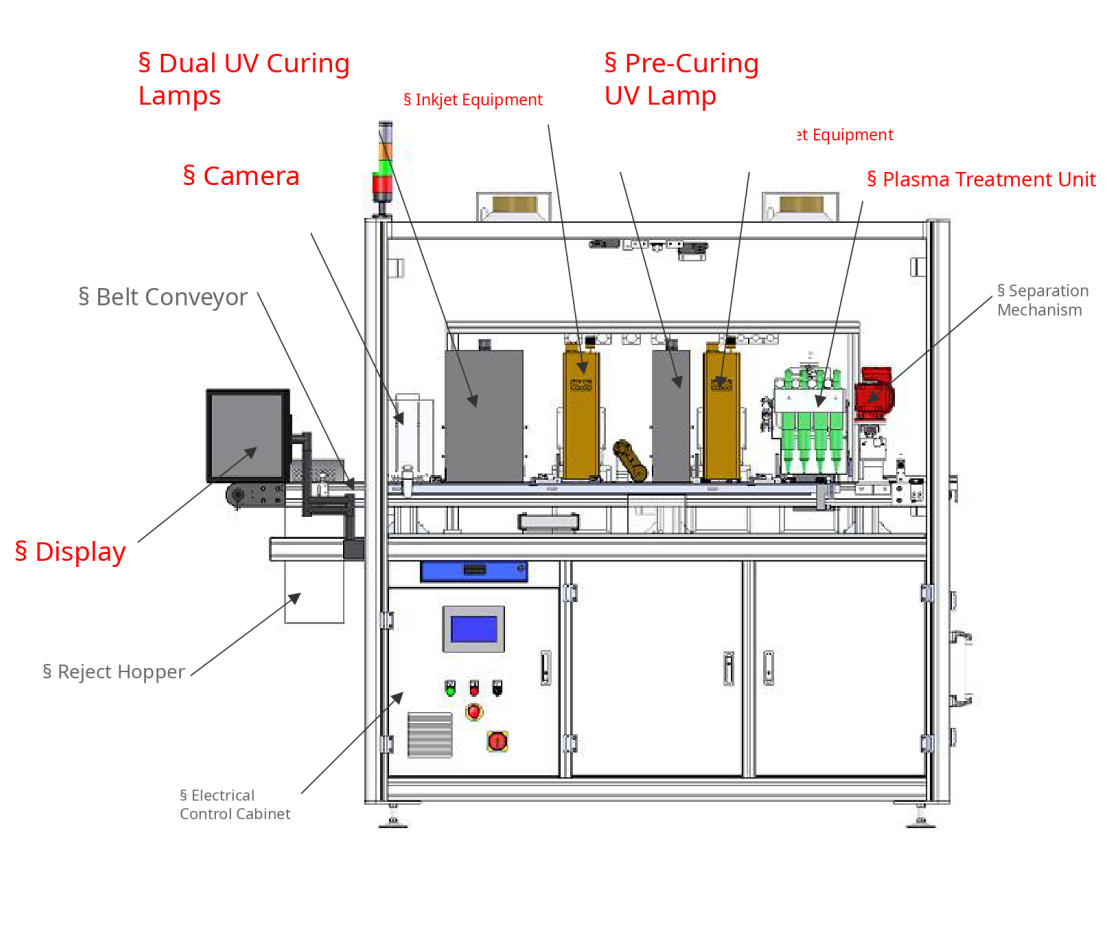

1.1 The separation mechanism spaces the caps evenly and feeds them into the plasmatreatment area for surface treatment;

1.2 The caps then pass beneath the first inkjet unit for application of base ink, then enterthe pre-curing

UV lamp for pre-curing, after which they enter the second inkjet unit forcoding/printing, and then pass under the dual UV curing lamps for final ink curing;

1.3 The belt conveyor transports the caps beneath the camera lens, where thecamera captures and analyzes images; the reject mechanism, based on information from the camera and inkjet codinq machine precisely rejects nonconforming caps;

1.4 Conveyor speed can be maintained at 1,500 pcs/min.

2. Material

specifications:

2.1 Main frame is constructed from aluminum-alloy profiles

2.2 Viewing win dows use transparent PC paneis;

2.3 Adjustable anti-vibration, noise-reducing;

2.4 Separation mechanism motor: SEW, 0.12 kW

2.5 Belt servo motor: 0.4 kW;

2.6 Vacuum blower: 2.2 kW.

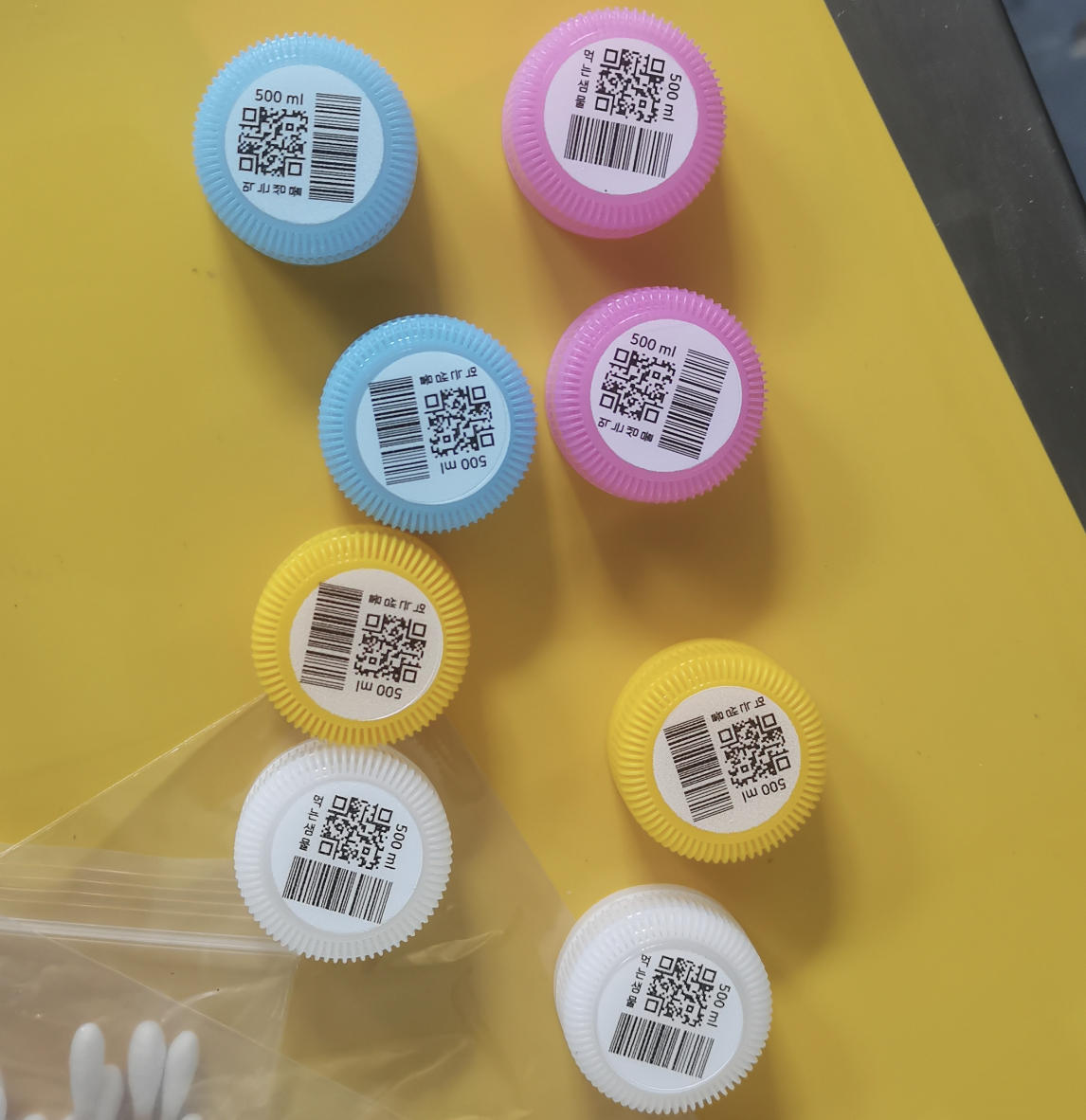

3.Samples for reference only

4.Videos for reference

High speed cap sorting elevator &trace 2D GS1 code coding solution
