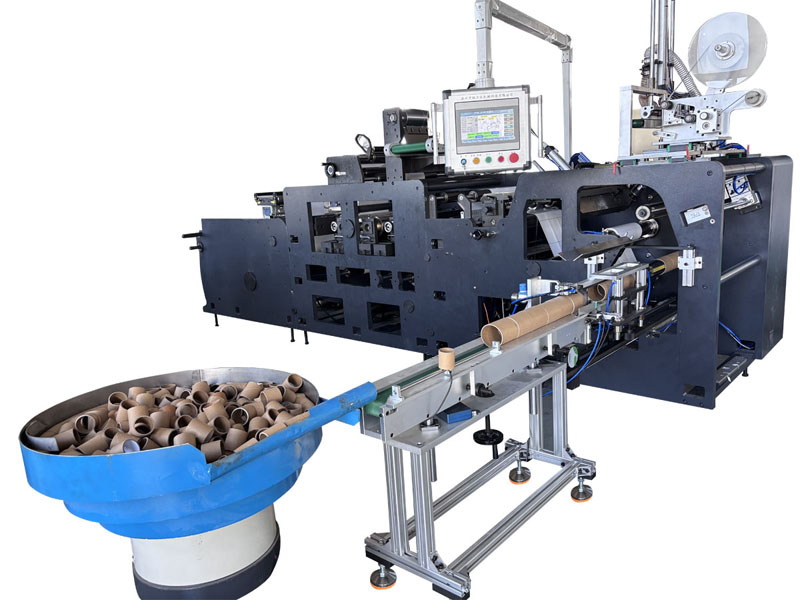

Small Rolls Label Slitting Machine
The Small Rolls Label Slitting Machine which can be big rolls to small rolls,with three-shaft die-cutting slitting rewinding machine is a new model independently developed by our company to meet domestic and overseas market demands. Featuring labor savings, high automation, flexible operation and outstanding production efficiency, this slitting and rewinding equipment delivers superior overall performance.
Product Features
Equipped with integrated stations including automatic paper loading, web guiding, die-cutting, waste removal, slitting, rewinding, automatic cutting, labeling, core threading and finished product ejection, the machine supports fully automatic continuous production cycles. It can either operate inline connected to upstream equipment or run offline as a standalone unit, compatible with paper cores ranging from 1 inch to 3 inches in diameter. It serves as an ideal new-generation machine for self-adhesive label die-cutting and slitting applications.
Multiple servo motors are deployed across the machine to ensure precise movements at every processing stage. It adopts variable-frequency speed regulation, PLC central control and a touchscreen operation panel, paired with an automatic tension control system for user-friendly operation and rapid parameter adjustment. The machine is built with high-precision length counting for finished rolls and bulk raw web metering functions. Constructed with premium raw materials, top-tier components and advanced manufacturing techniques, it uses imported bearings throughout the frame for exceptional long-term durability and stable service life.

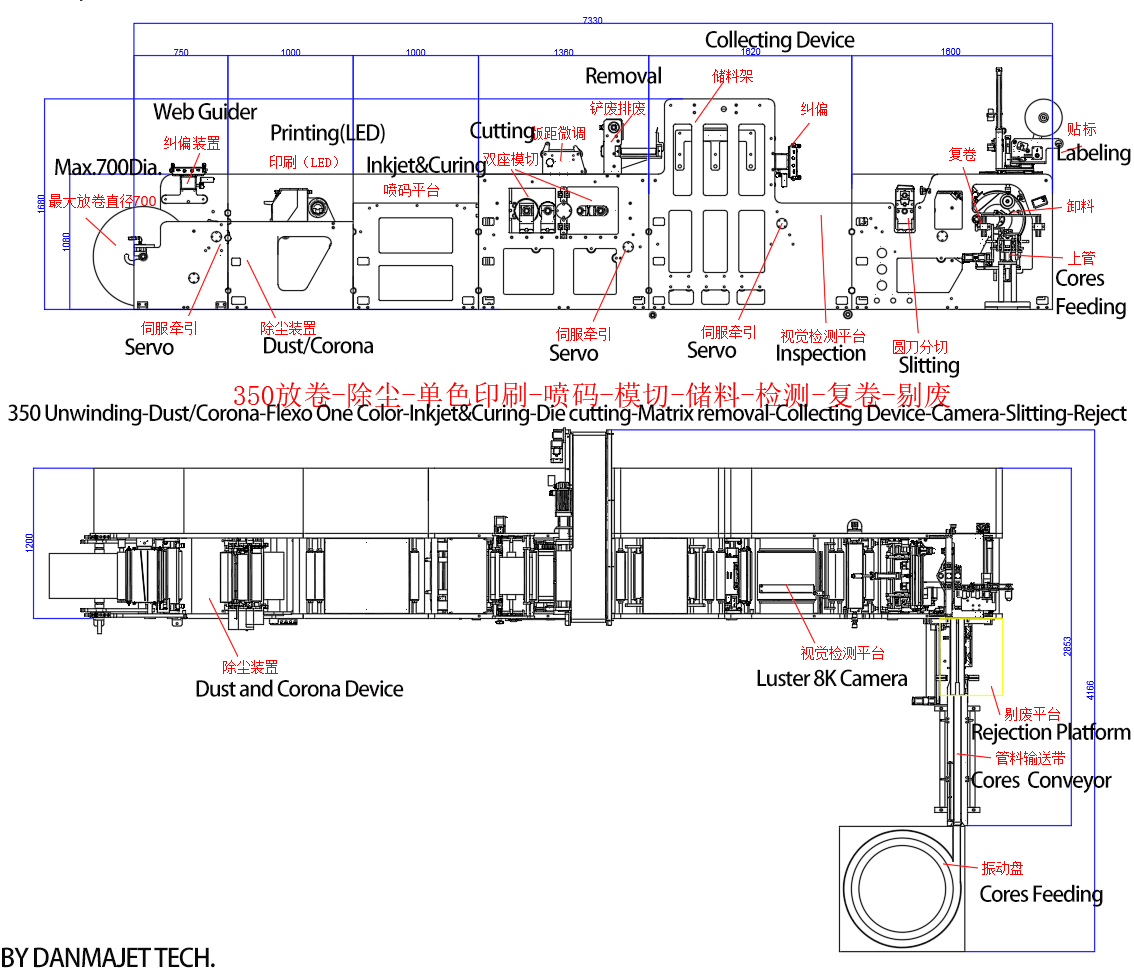

Machine Composition
The unit consists of 12 core assemblies as listed below:
Automatic Paper Loading System
Automatic Web Guiding System
Dual-Station Die-Cutting System (Optional)
Tension Control System
Independent Waste Removal System
Slitting System
Automatic Cutting System
Labeling System
Core Threading System
Finished Product Ejection System
Electrical Control System
Magnetic Roller Transport Cart for Replacement
Can be collected with flexo printing machine,UV digital inkjet printing machine
Technical Specifications
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Max. Operating Speed | 150 m/min | Max. Rewind Diameter after Die-Cutting | 200 mm |
| Max. Web Input Width | 570 mm | Min. Core Diameter for Slitting Rewind | 25 mm |
| Max. Die-Cutting Width | 550 mm | Max. Core Diameter for Slitting Rewind | 76 mm |
| Max. Unwind Diameter | 1200 mm | Inner Diameter of Raw Material Core | 76 mm |
| Power Supply | 380V / 50Hz / 3HP | Pneumatic Requirement | 0.8 MPa, 1.5 m³/min |
| Overall Dimension (L×W×H) | 4350×2200×2000 mm | Total Machine Weight | 5.0 Tons |
