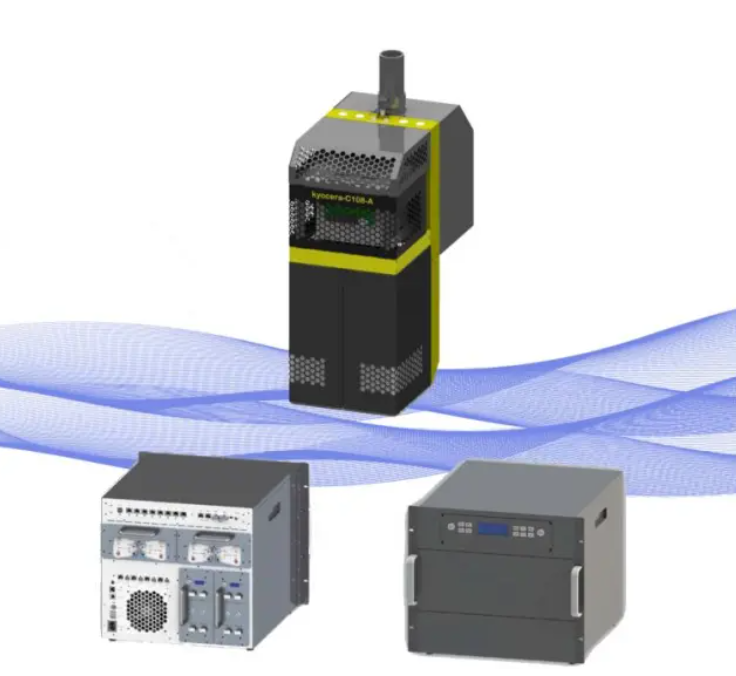

300M Speed Industrial Inkjet Printer
Industrial-Grade Inkjet Coding Solution
Our advanced coding system integrates Ricoh Gen6 (G6) piezoelectric printheads with proprietary control software to deliver uncompromised performance in ultra-high-speed production environments up to 300 meters/minute.
Core Technologies
Ricoh G6 Printhead
Native 1200dpi resolution with <5pl variable droplet technology
50kHz firing frequency synchronized with press speeds
Stabilized Ink Supply Pressure Control
Dynamic regulation within ±0.3kPa (industry standard: ±1.5kPa)
Triple filtration + ultrasonic ink monitoring system
Independent Software Platform
Real-time OS kernel (<2ms latency)
Pre-configured interfaces for Heidelberg/Komori presses via OPC-UA
Performance Specifications
Max Line Speed:300m/min (@600dpi)
Standoff Distance:3-25mm adjustable
Substrate Range:Metal/Plastic/Film/Cardboard
Can be compatible with high flexographic/gravure printing lines.
Description
Ricoh G6 High Speed UV Piezo Industrial Inkjet Printer
300m/min Production Line Coding System with RICOH Custom Printhead
Breakthrough Speed Performance
Max speed: 300m/min at 600dpi×200dpi resolution
Multi-mode operation:
∙ 200m/min @ 600dpi×600dpi
∙ 280m/min @ 600dpi×450dpi
Industry-leading throughput: Processes 18,000 linear meters/hour
Advanced Printhead Technology
RICOH custom piezoelectric DOD head:
∙ 1200DPI native resolution
∙ 8-row nozzle configuration
∙ 60kHz firing frequency
Unmatched durability: 100 billion actuations per nozzle
Precision droplet control: 7pl/14pl/21pl variable dot sizes
System Architecture
3.1 Modular Design
Scalable from 1 to 8 standard modules (100 modules customizable)
Print gap: 0.5-2mm adjustable
3.2 Ink Delivery System
UV ink compatibility:
∙ Standard colors: Black/Yellow/Red/Blue/White/Varnish
∙ Security options: IR/UV invisible inks
Dual-pressure system:
∙ Negative pressure supply
∙ Positive pressure cleaning
Industrial Connectivity
Interfaces: USB3.0 + Gigabit Ethernet
Software: MagicData variable data editor supports:
∙ GS1/QR/Datamatrix codes
∙ Anti-counterfeit marks
∙ Real-time database linking
Material Compatibility
Substrate TypeExamplesPlasticsPVC/OPP/BOPP/PETMetalsAluminum/foilPaperCoated/boxboardSpecialTobacco packaging/Tetra Pak
Environmental Specifications
Operating temp: 5-45°C
Humidity range: 20-65% RH
Mounting options:
∙ High-speed rewinding machines
∙ Sheet-fed platforms
