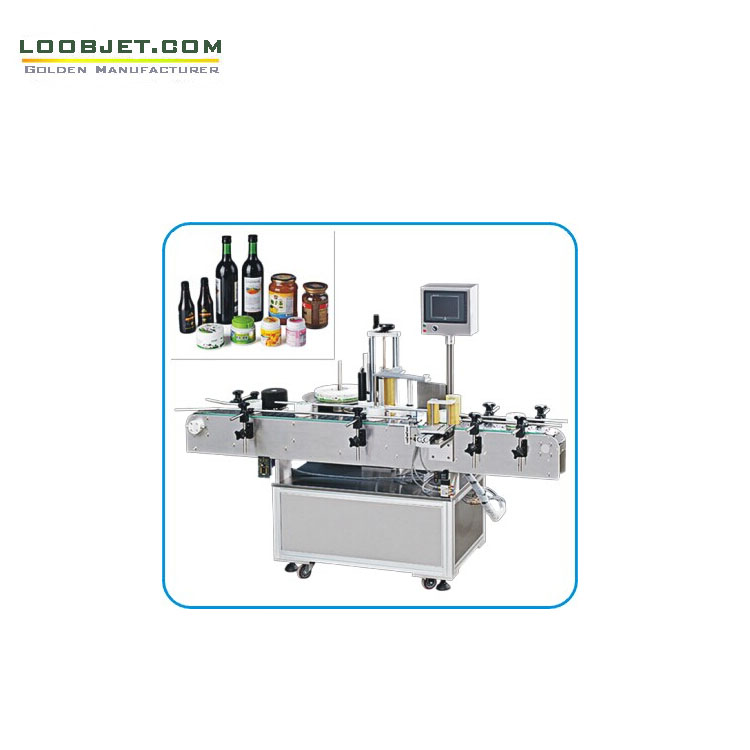

High speed Round Bottle labeling machine Main Feature

1.Applicable to the pharmaceutical, food, daily chemical etc. industry round bottle for semi_circle and circle labeling

2. Using well-know motor drive, sending speed stability, reliability

3.Adopting advanced human_computer interface system to easy operation, complete functions, it has a wealth of online help function

4.Automatic photoelectric detection, have nothing without labeling, automatic correction or alarm and automatic detection function without standard, prevent leakage and waste

5.Rotary rolling body, adopting elastic cotton belt, label attached more smooth, firm, no wrinkles, more better to  improve packaging quality;

6.This machine has simple structure, compact structure, convenient operation and maintenance

7.Its back side can connect production line, can also be equipped with receiving turntable and be able to facilitate product of collecting, sorting and packing

High speed Round Bottle labeling machine Specification

Machine size（L*W*H）2400*1150*1500 mm

Labeling speed : 20~300 pics/min

Object height : 30~280 mm

Object thickness: 30~120 mm

Label height :5~140 mm

Label length : 20~300 mm

Labeling accuracy : ±1mm

Scroll inner diameter : 76 mm

Scroll outer diameter : 420 mm

Power supply : 110V/220V  50/60HZ   1.5hp

Machine weight:450kg
