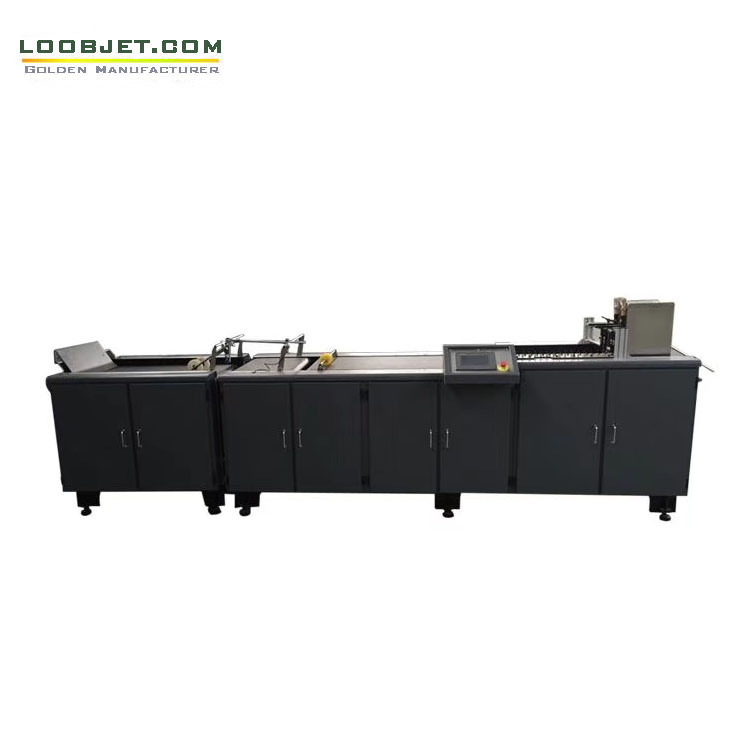

Main body

1. Main body: the equipment frame adopts high-strength and low stress steel wallboard with a thickness of 12mm to enhance stability. The transmission part is provided with protective cover

2. Main control: the whole machine is controlled by PLC, with touch screen to set parameters, and operable buttons at the front and rear of the equipment.

3. Drive: adopt high-performance reduction motor and frequency converter to improve operation stability.

4. Line arrangement: all lines of the machine are arranged in a closed manner to reduce the probability of failure caused by human factors

Coding and transmission part

1. Special perforated negative pressure belt, combined with large flow high-pressure fan, to ensure that the paper is stable and snug.

2. The transmission part adopts circular arc tooth synchronous belt and synchronous wheel to drive torque.

Touch screen function

1. Display the working linear speed (M / min).

2. Count display.

3. LED lighting frequency control.

4. Receiving delay.

Specifications

Paging mode:friction type
Separate width:70-450mm or OEM accepted.
Separate length:60-320mm
Separate thickness:0.02-3mm
Power:200w voltage:220V

Speed regulation:variable frequency+electronic stepless speed
Outside size:4500×1200×1150mm
Standard type (Bigger size for option)

Applications
Packing Bags: PE bags, paper box, paper tape, label, paper sheet and etc.
Cards: IC cards, IP cards and etc.
